TOMOROBO
ModernX Partners with Ken Robotech to Bring The World's Leading Rebar-Tying Robot
Up to 40%
Potential reduction in direct labor costs for rebar tying tasks.
Up to 40%
Potential reduction in direct labor costs for rebar tying tasks.
Up to 40%
Potential reduction in direct labor costs for rebar tying tasks.
500%
Increase in tying efficiency when comparing Tomorobo to manual methods.
500%
Increase in tying efficiency when comparing Tomorobo to manual methods.
500%
Increase in tying efficiency when comparing Tomorobo to manual methods.
140+
Global job sites where our core robotics technology has been successfully deployed.
140+
Global job sites where our core robotics technology has been successfully deployed.
140+
Global job sites where our core robotics technology has been successfully deployed.
11 H
Non-stop operating time on a single charge, covering a full and demanding worksite shift.
11 H
Non-stop operating time on a single charge, covering a full and demanding worksite shift.
11 H
Non-stop operating time on a single charge, covering a full and demanding worksite shift.
Introduction & Core Benefits

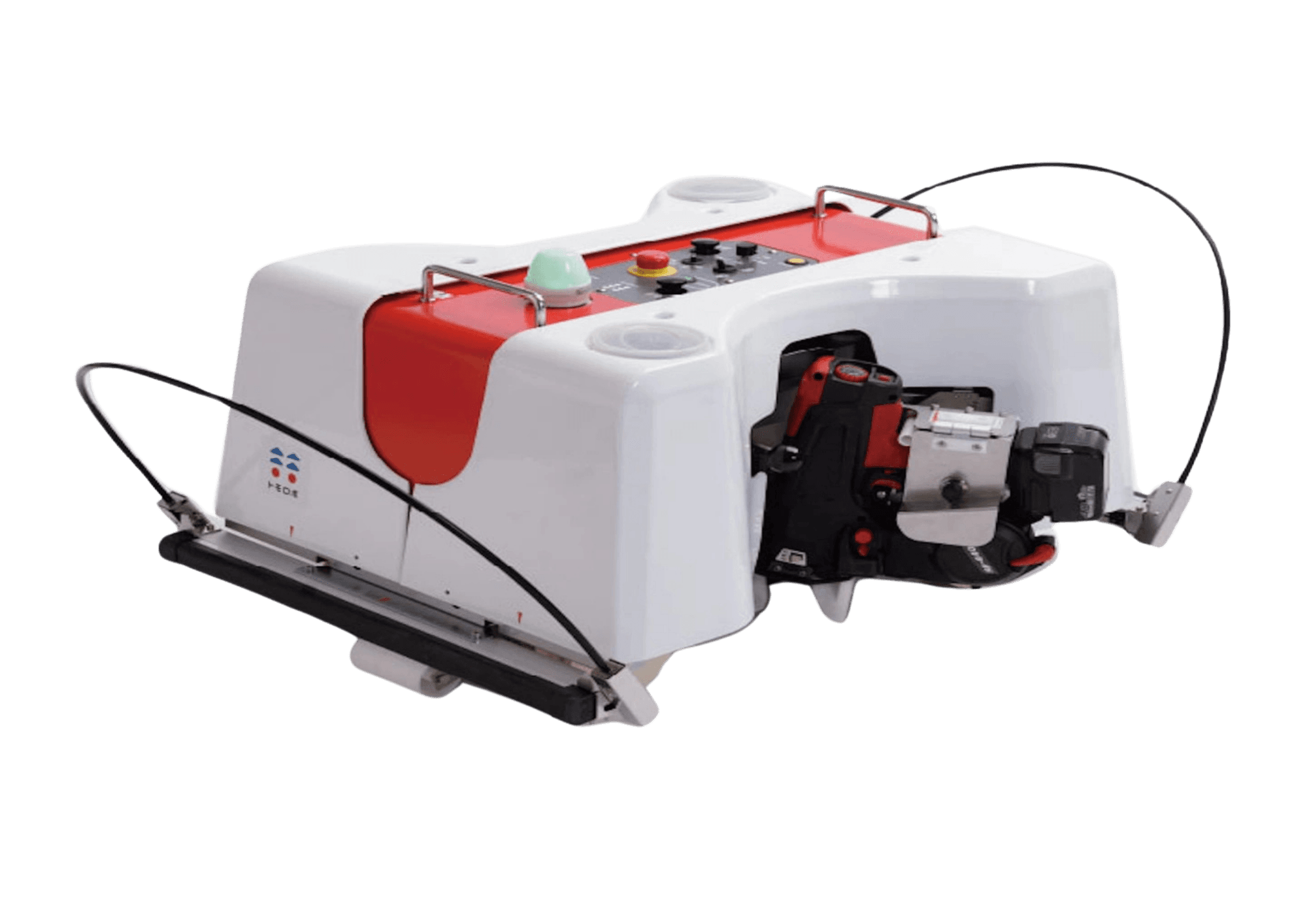

ModernX is proud to introduce Tomorobo, the #1 installed rebar-tying robot used on major construction sites across Japan. Developed by global construction robotics leader Ken Robotech, Tomorobo is a proven solution that directly tackles the most costly and labor-intensive part of your slab preparation.
Feature list
We now bring this world-class technology to Australia and GCC through our flexible Robotics-as-a-Service (RaaS) model.
Dramatically Faster Tying: Completes each tie in under 2 seconds , making it up to 1.4 times faster than manual methods and significantly speeding up your project timeline.
Significant Cost Reduction: Slash your reliance on expensive manual tying crews and gain predictable costs. Our RaaS plan delivers potential labor savings of 20-40%.
Improved Site Safety: Automate one of the most physically demanding and injury-prone tasks on any job site. This reduces the risk of repetitive strain injuries and frees up your workers for less strenuous roles.
Unmatched Consistency & Quality: Every tie is performed to specification with consistent force. This enhances overall build quality and minimizes the need for costly rework or inspection delays.
Introduction & Core Benefits
ModernX is proud to introduce Tomorobo, the #1 installed rebar-tying robot used on major construction sites across Japan. Developed by global construction robotics leader Ken Robotech, Tomorobo is a proven solution that directly tackles the most costly and labor-intensive part of your slab preparation.
Feature list
We now bring this world-class technology to Australia and GCC through our flexible Robotics-as-a-Service (RaaS) model.
Dramatically Faster Tying: Completes each tie in under 2 seconds , making it up to 1.4 times faster than manual methods and significantly speeding up your project timeline.
Significant Cost Reduction: Slash your reliance on expensive manual tying crews and gain predictable costs. Our RaaS plan delivers potential labor savings of 20-40%.
Improved Site Safety: Automate one of the most physically demanding and injury-prone tasks on any job site. This reduces the risk of repetitive strain injuries and frees up your workers for less strenuous roles.
Unmatched Consistency & Quality: Every tie is performed to specification with consistent force. This enhances overall build quality and minimizes the need for costly rework or inspection delays.
Introduction & Core Benefits
ModernX is proud to introduce Tomorobo, the #1 installed rebar-tying robot used on major construction sites across Japan. Developed by global construction robotics leader Ken Robotech, Tomorobo is a proven solution that directly tackles the most costly and labor-intensive part of your slab preparation.
Feature list
We now bring this world-class technology to Australia and GCC through our flexible Robotics-as-a-Service (RaaS) model.
Dramatically Faster Tying: Completes each tie in under 2 seconds , making it up to 1.4 times faster than manual methods and significantly speeding up your project timeline.
Significant Cost Reduction: Slash your reliance on expensive manual tying crews and gain predictable costs. Our RaaS plan delivers potential labor savings of 20-40%.
Improved Site Safety: Automate one of the most physically demanding and injury-prone tasks on any job site. This reduces the risk of repetitive strain injuries and frees up your workers for less strenuous roles.
Unmatched Consistency & Quality: Every tie is performed to specification with consistent force. This enhances overall build quality and minimizes the need for costly rework or inspection delays.
Technical Specifications

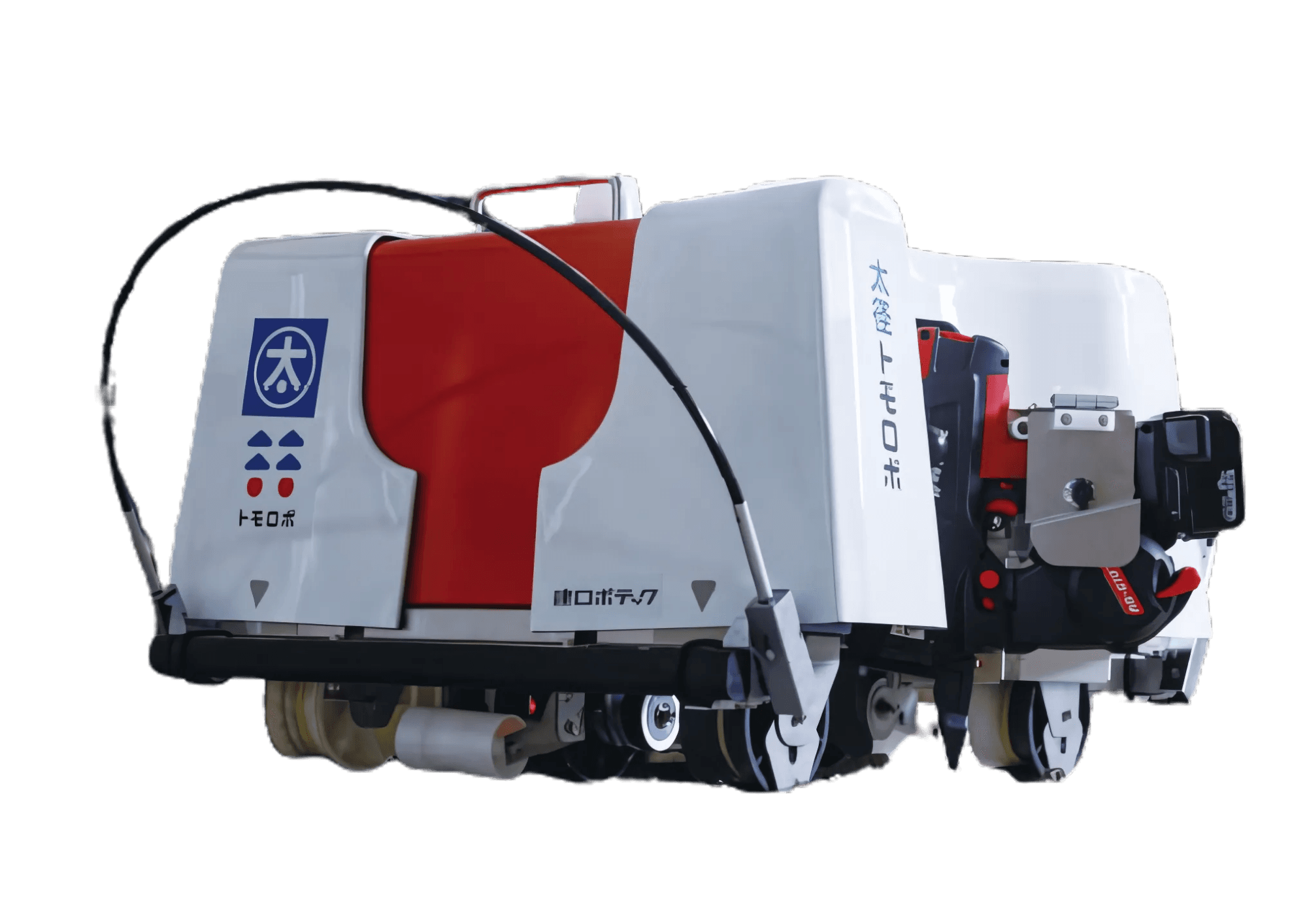

Tomorobo is engineered for performance and compatibility on demanding Australian job sites. Two distinct models are available to cover the vast majority of rebar tying needs.
Feature list
Specification | Details |
|---|---|
Models Available | RTM1-X3-A1 (for Rebar Ø10-16mm), RTM1-X3-A2 (for Rebar Ø16-29mm) |
Tying Speed | < 2.0 seconds per location (@ 200mm pitch) |
Productivity | Approx. 1.4x manual tying speed |
Operating Time | Approx. 11 hours per charge |
Charging Time | Up to 6 hours |
Rebar Compatibility | Standard, Coated, & Stainless Steel; Pitch 100-300mm |
Supported Tiers | Standard tools (e.g., Max, TJEP - sold separately) |
Robot Unit Weight | 39kg (requires a 2-person lift) |

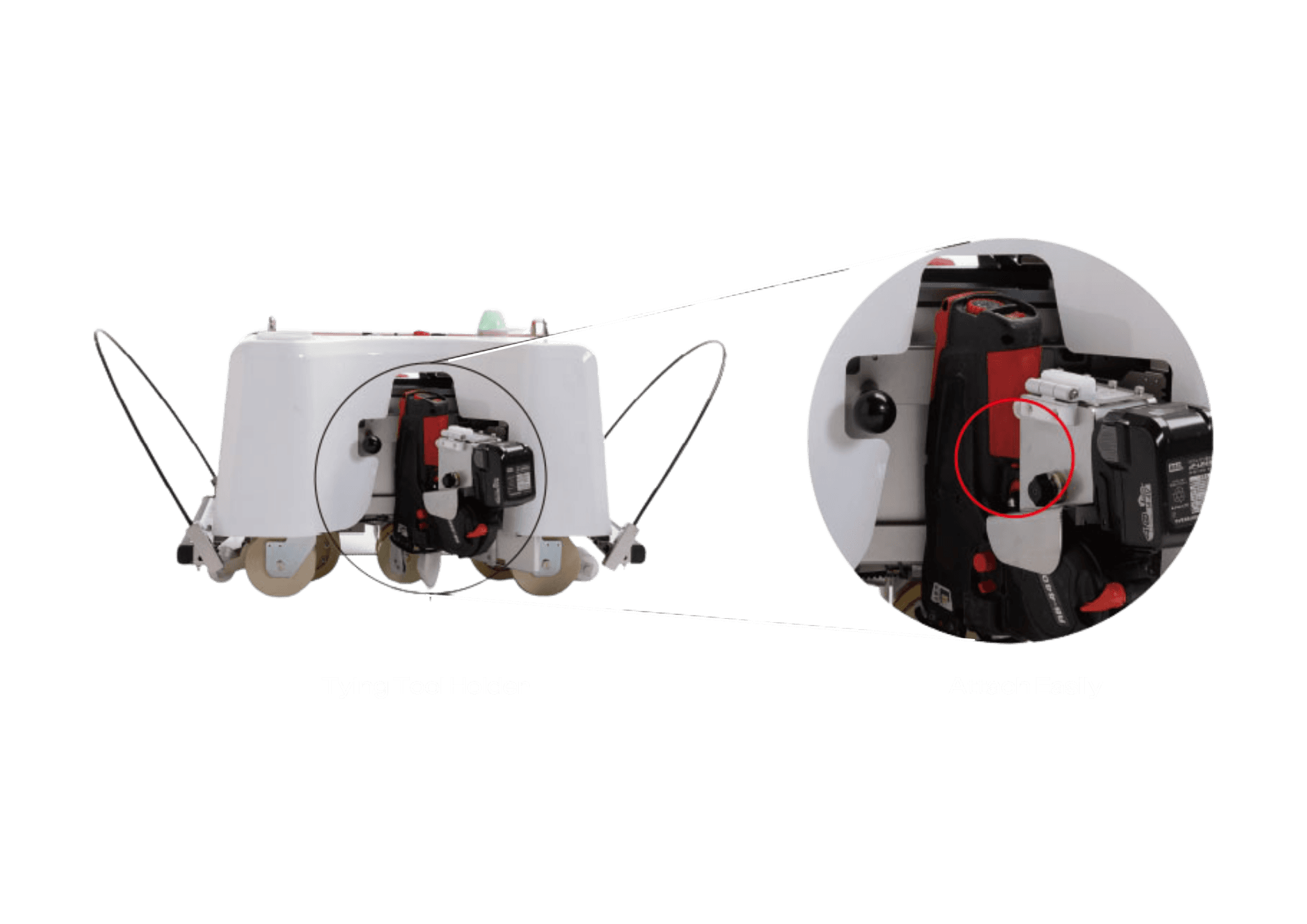

Tomorobo Key Components | Control Panel Signal Lamp Handle (for carrying) Center Unit Working Unit Cups for Tying Wire Tying Tool Holder Working Unit Variable Lever Contact Sensor Bumper Sensor Charging Port Power Key Switch. |
Technical Specifications
Tomorobo is engineered for performance and compatibility on demanding Australian job sites. Two distinct models are available to cover the vast majority of rebar tying needs.
Feature list
Specification | Details |
|---|---|
Models Available | RTM1-X3-A1 (for Rebar Ø10-16mm), RTM1-X3-A2 (for Rebar Ø16-29mm) |
Tying Speed | < 2.0 seconds per location (@ 200mm pitch) |
Productivity | Approx. 1.4x manual tying speed |
Operating Time | Approx. 11 hours per charge |
Charging Time | Up to 6 hours |
Rebar Compatibility | Standard, Coated, & Stainless Steel; Pitch 100-300mm |
Supported Tiers | Standard tools (e.g., Max, TJEP - sold separately) |
Robot Unit Weight | 39kg (requires a 2-person lift) |
Tomorobo Key Components | Control Panel Signal Lamp Handle (for carrying) Center Unit Working Unit Cups for Tying Wire Tying Tool Holder Working Unit Variable Lever Contact Sensor Bumper Sensor Charging Port Power Key Switch. |
Technical Specifications
Tomorobo is engineered for performance and compatibility on demanding Australian job sites. Two distinct models are available to cover the vast majority of rebar tying needs.
Feature list
Specification | Details |
|---|---|
Models Available | RTM1-X3-A1 (for Rebar Ø10-16mm), RTM1-X3-A2 (for Rebar Ø16-29mm) |
Tying Speed | < 2.0 seconds per location (@ 200mm pitch) |
Productivity | Approx. 1.4x manual tying speed |
Operating Time | Approx. 11 hours per charge |
Charging Time | Up to 6 hours |
Rebar Compatibility | Standard, Coated, & Stainless Steel; Pitch 100-300mm |
Supported Tiers | Standard tools (e.g., Max, TJEP - sold separately) |
Robot Unit Weight | 39kg (requires a 2-person lift) |
Tomorobo Key Components | Control Panel Signal Lamp Handle (for carrying) Center Unit Working Unit Cups for Tying Wire Tying Tool Holder Working Unit Variable Lever Contact Sensor Bumper Sensor Charging Port Power Key Switch. |
Advanced Capabilities: More Than Just Tying
Beyond its primary function, Tomorobo serves as a powerful data-capture tool for enhanced quality control. An integrated GoPro camera records real-time footage of the rebar grid as it works. This data is then used to create a highly accurate 3D model for faster, more detailed site inspections.
Feature list
Reduce Inspection Time: Provides detailed visual analysis that improves decision-making and reduces time required for manual site assessments.
Lower Labor Costs: By automating parts of the inspection process, you can further reduce direct labor costs and allocate resources more efficiently.
Improve Accuracy: Compare point cloud data against design drawings to digitally verify rebar size, pitch, and height from the ground.
Ready to See Tomorobo on Your Job Site?
Schedule a free consultation and let us build a custom ROI analysis for you. We'll show you exactly how much time and money Tomorobo can save your next project.
Advanced Capabilities: More Than Just Tying
Beyond its primary function, Tomorobo serves as a powerful data-capture tool for enhanced quality control. An integrated GoPro camera records real-time footage of the rebar grid as it works. This data is then used to create a highly accurate 3D model for faster, more detailed site inspections.
Feature list
Reduce Inspection Time: Provides detailed visual analysis that improves decision-making and reduces time required for manual site assessments.
Lower Labor Costs: By automating parts of the inspection process, you can further reduce direct labor costs and allocate resources more efficiently.
Improve Accuracy: Compare point cloud data against design drawings to digitally verify rebar size, pitch, and height from the ground.
Ready to See Tomorobo on Your Job Site?
Schedule a free consultation and let us build a custom ROI analysis for you. We'll show you exactly how much time and money Tomorobo can save your next project.
Advanced Capabilities: More Than Just Tying
Beyond its primary function, Tomorobo serves as a powerful data-capture tool for enhanced quality control. An integrated GoPro camera records real-time footage of the rebar grid as it works. This data is then used to create a highly accurate 3D model for faster, more detailed site inspections.
Feature list
Reduce Inspection Time: Provides detailed visual analysis that improves decision-making and reduces time required for manual site assessments.
Lower Labor Costs: By automating parts of the inspection process, you can further reduce direct labor costs and allocate resources more efficiently.
Improve Accuracy: Compare point cloud data against design drawings to digitally verify rebar size, pitch, and height from the ground.
Ready to See Tomorobo on Your Job Site?
Schedule a free consultation and let us build a custom ROI analysis for you. We'll show you exactly how much time and money Tomorobo can save your next project.
